Description

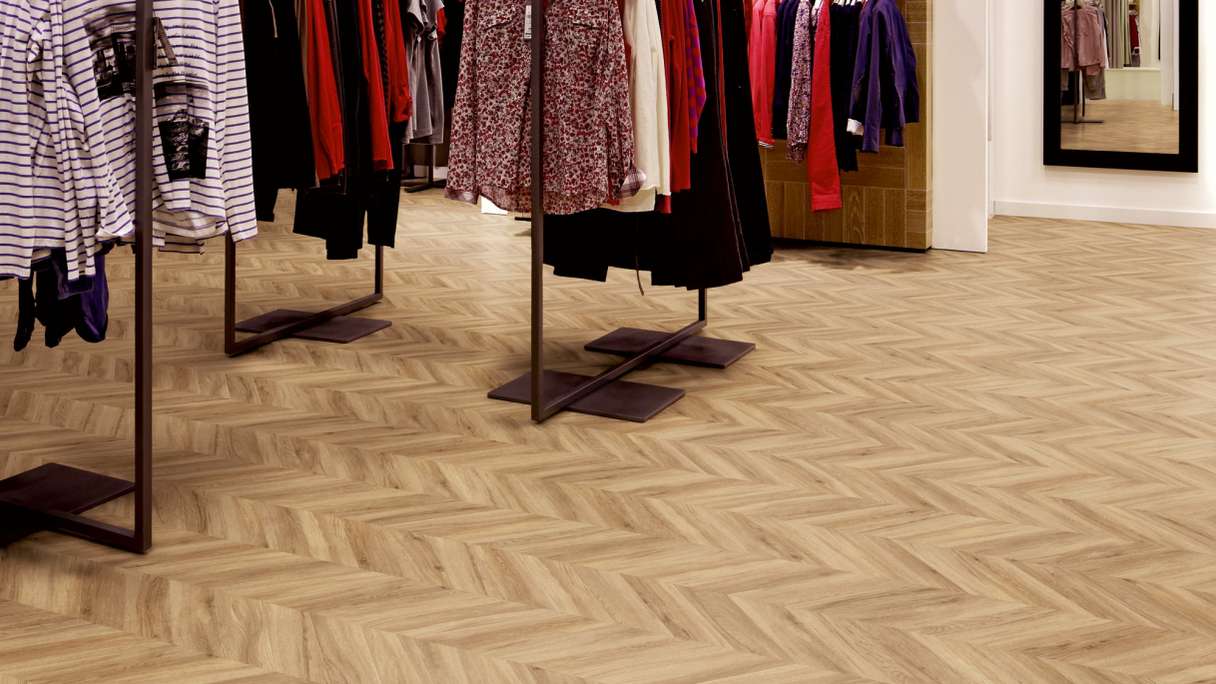

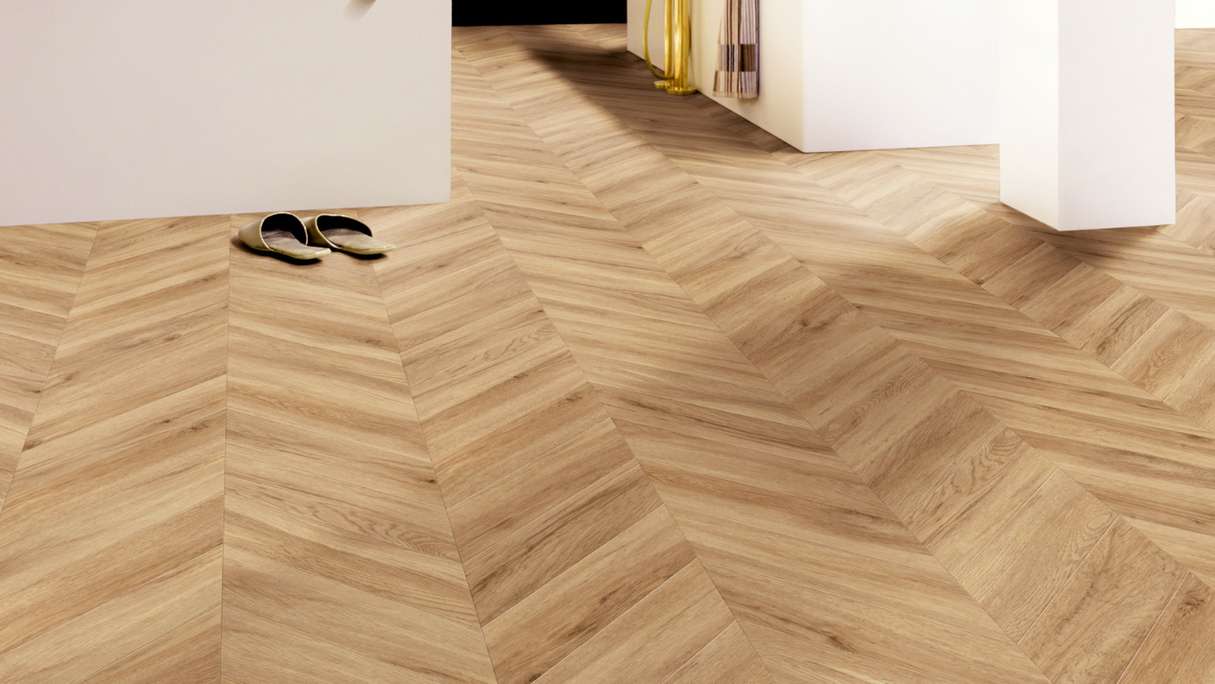

The high-quality design floors from Project Floors from the Chevron Collection offer you a decor in the noble "French parquet" style
- Noble installation method special decor with a noble look enables individual room design through herringbone laying technique
- high walking comfort the soft and elastic surface is warm to the touch and pleasant to walk on
- Hygienic and easy to clean moisture resistant and easy to clean
- ideal for renovation work
The name PROJECT FLOORS has been associated with high-quality LVT floor coverings since 1999. The abbreviation "LVT" stands for luxury vinyl tiles and indicates that these are PVC-based floorings. The PVC designs from PROJECT FLOORS are available in ceramic concrete, sand or plain colour finishes that replicate the look of natural materials. They combine the authentic look of the original materials with the robustness and ease of care of synthetic floor coverings.
| item no. | PW3220FP |
|---|---|
| Manufacturer | Project Floors |
| Collection | Chevron |
| Length in mm | 457 |
| Width in mm | 102 |
| Thickness in mm | 2.5 |
| Wear layer | 0,55 mm |
| Wear class | 42 Industrial (moderate) |
| Joint | Beveled edge (4 sides) |
| suitable for | Bath, Kitchen, Bedroom & living room, Hallway & Corridor |

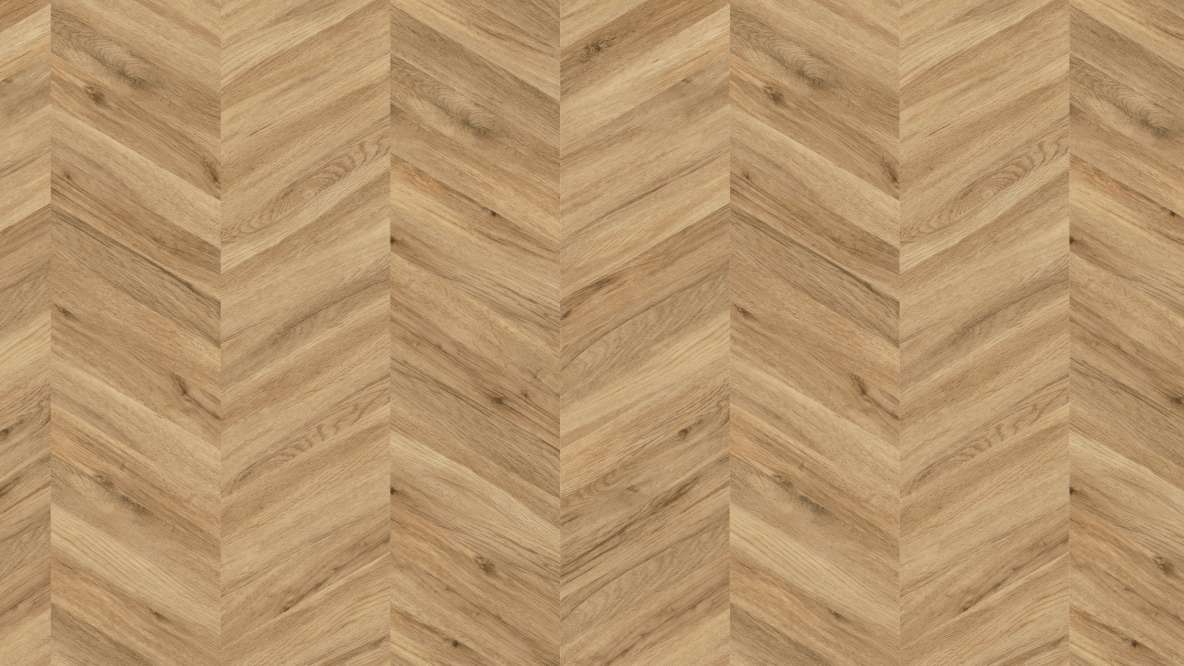

| installation pattern | Herringbone |
| Installation type | glue |
| Sorting (grain) | lively/rustic |
| Look | Wood effect |
| Underfloor heating | suitable |
| Special features | Pet Friendly, Suitable for humid rooms, Waterproof |
| EAN | 4250664360309 |
| Structure | Full vinyl |
| Piece per package | 72 |
| Style | Vintage |
| Slip resistance | R10 |
| Shipping group | M |
| Colour | brown |
| Range of application | Residential, Commercial, Industrial |
| Weight | 12,73 kg/Packing |
| Package Content | 3.34 m² |
|
Show all data ▼
|
|
| Downloads | |
Project Floors Herringbone - Technical data sheet EN
|
|
|
Project Floors Herringbone - Installation instruction EN
|
|
|
Project Floors Herringbone - Cleaning and care instructions EN
|
|
We will help you with your questions!
A specialist adviser will be happy
to advise you personally.
☎ 05222 960 4810
Mon - Fri: 9am - 6pm
Sat: 9am - 2pm
Installation guide of theWet Bed & Silent Stick
Variant: DIY instruction wet bed bonding & Silent Stick
button
1. substrate preparation
The substrate should be permanently dry, load-bearing and even. Any unevenness should be sanded down and filled with a floor levelling compound. The surface to be laid can then be cleaned with a hoover.
CAUTION: Never install Silent Stick over a soft subfloor, e.g. carpet, cork or any type of foam underlay.
button
2. acclimatisation
The vinyl planks should be stored horizontally in the room in which it is to be installed for at least 24 hours before installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after the installation.
Before laying, it is imperative that the official laying instructions, which are included in every package, are followed, otherwise any claim to warranty and guarantee will be invalidated!
Silent Stick (alternative to adhesive):
button
3. before laying
Now you can lay out the sheets in the opposite direction to the direction in which the top layer is laid. The foil side should always face upwards. Simply cut the Silent Stick to size with a cutter knife.
button
4. laying instructions
As soon as the strips have been laid butt to butt, the foil is removed area by area (approx. 2 planks wide) and the vinyl planks can be glued on and pressed down.
ATTENTION: There must always be a gap of approx. 5mm between the flooring and the wall and between the flooring and all fixed components.
button
5. finish
Afterwards, the laid surface is rolled with a roller and the skirtings can be fixed. Please note the drying times of the adhesive. If you have a large area, we recommend that you roll the laid planks after approx. 20-30 minutes so that no air bubbles form.
Classic wet-bed gluing:
button
3. before laying
Before applying the adhesive, open the packages and lay the elements from different packages in alternation to obtain an even decorative pattern in the area. Mark the reference points using a chalk line and cut the vinyl planks to size with a cutter knife. The planks can now be broken by simply folding them.
button
4. installation instructions
Apply the adhesive with a notched trowel and lay the vinyl planks in the wet bed, observing the flash-off times of the adhesive. The elements should be placed in the adhesive with little tension and with tight joints and pressed on. When doing so, observe the laying direction on the back of the vinyl planks.
ATTENTION: A gap of approx. 10mm must always be maintained between the flooring and the wall as well as to all fixed components.
button
5. finish
The laid surface is then rolled with a roller and the skirting boards can be fixed. Please note the drying time of the adhesive. The glued surface should be rolled after approx. 20-30 minutes so that no air bubbles form.
What you will need to make it yourself
Material:
- Klebevinyl
- Planeo Silent Stick / adhesive
Tools:
- Cutter knife
- Angle
- Pencil
- Folding rule
- Toothed spatula for wet bed bonding
optional:
- Skirting boards
Working time:
- Silent Stick: approx. 3-4 hours for 15-20m².
- Wet bed bonding: approx. 6 hours for 15-20m².
Difficulty level:
- Silent Stick: easy
- Wet bed bonding: difficult
