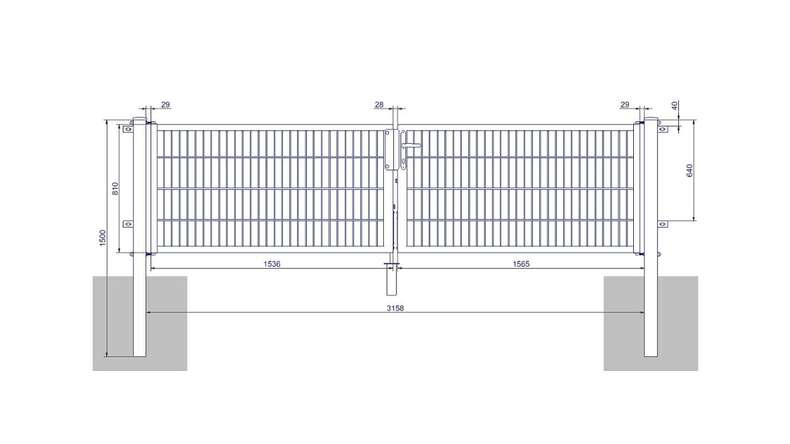

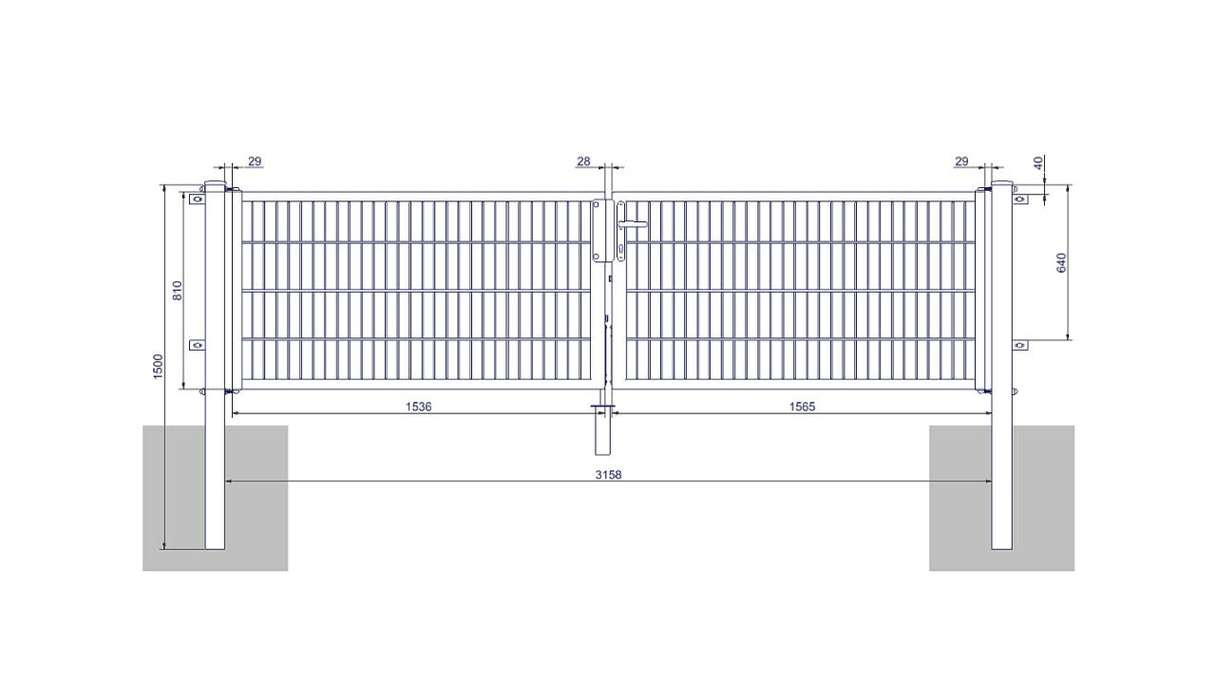

Universal door medium 2-leaf anthracite incl. gateposts

The double-leaf universal door in medium design has 80/80/3 mm square tube posts.
The gate can be adjusted as required by means of hanging bolts and can be opened by 180°.

The heavy meshes have two horizontal and parallel wires with a diameter of 8 mm. In between, vertical wires with a thickness of 6 mm together form the mesh look.

• Machine spacing: 50/200 mm
• Distance variants to posts: 315.8/415.8 cm

Scope of delivery:
• Rectangular surrounding frame: 60/40 mm
• Square post: 80/80/3 mm
• Gate infill: Double rod mesh 8/6/8 mm
• Adjustable hanging screws M12
• Aluminium lever handle set
• Stop bar can be used DIN left/right
• Prepared for profile cylinder 31/31 mm
• Floor lock

Please note: The lock latch must be set to the desired DIN direction before installation!

The doors can be used as DIN left or right hinges.
