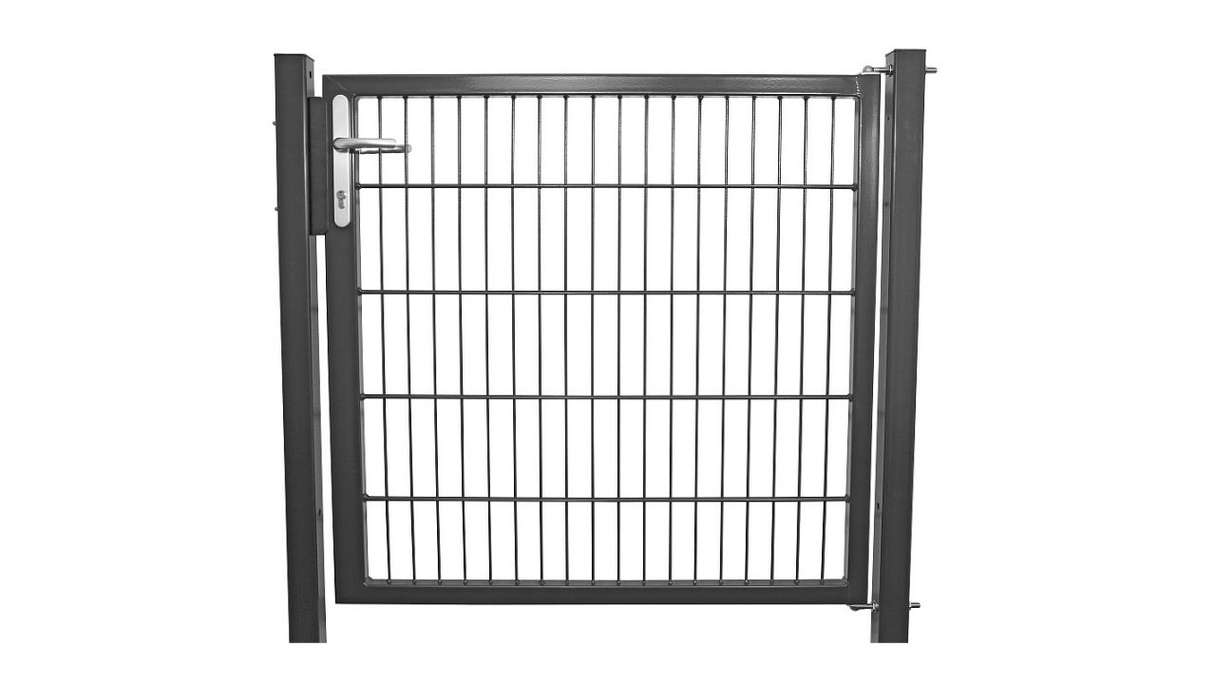

Universal door medium 1-leaf anthracite incl. gateposts
medium reinforced fence gate - selectable width & height
Item no.:
DSM_TORM1_Ant_conf
- Bodenwelt
- Hersteller planeo
- Garden Fences
- Garden Gates
- Universal door medium 1-leaf anthracite incl. gateposts
Package price (1 Pc):
515,80 €
To cart
- Customer service until 6pm¹ - personal & close
- DIY Videos - DIY Instructions
Offer
request
- Medium thick perimeter frame.
- Square tube posts: 60/60/3mm.
- Vertical wire thickness: 6 mm.
- Horizontal wires double: 8 mm.
- Hot-dip galvanised and powder coated for double protection against corrosion.
- RAL 7016 anthracite.

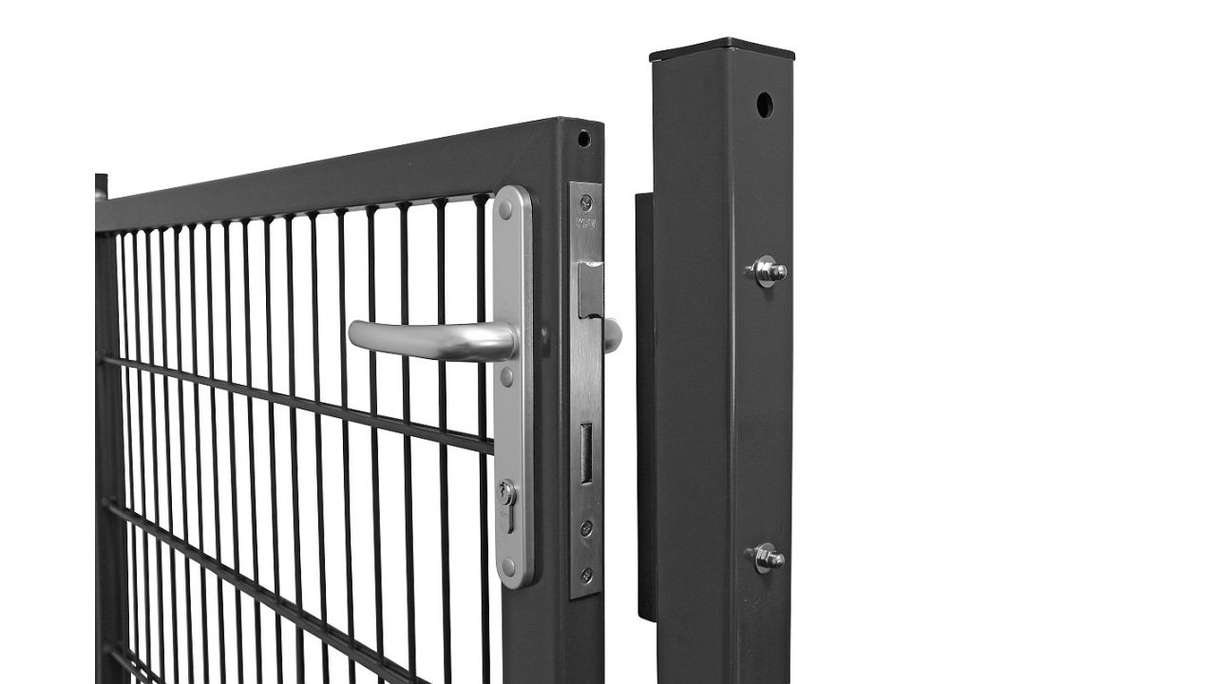

- Aluminium lever handle set.
- Lock prepared for profile cylinder 31/31mm.
- All single leaves can be combined (double door).
- Stop bar can be used DIN left & right.
Offer
request
Description
Technical data
DIY - Videos
Product description
- Medium thick perimeter frame.
- Square tube posts: 60/60/3mm.
- Vertical wire thickness: 6 mm.
- Horizontal wires double: 8 mm.
- Hot-dip galvanised and powder coated for double protection against corrosion.
- RAL 7016 anthracite.
- Aluminium lever handle set.
- Lock prepared for profile cylinder 31/31mm.
- All single leaves can be combined (double door).
- Stop bar can be used DIN left & right.
The universal gate in the medium version has a 60/60/3 mm square tube post.
The gate can be adjusted as required by means of hanging screws and can be opened by 180°.
The heavy meshes have two horizontal and parallel wires with a diameter of 8 mm. In between, vertical wires with a thickness of 6 mm together form the mesh look.
- Machine: 50/200 mm
- Distance variants to posts: 109-112/134/159 cm
- Scope of delivery:
- Rectangular surrounding frame: 60/40 mm
- Square post: 60/60/3 mm
- Gate infill: Double rod mesh 8/6/8 mm
- Adjustable hanging screws M12
- Aluminium lever handle set
- Stop bar can be used DIN left/right
- Prepared for profile cylinder 31/31 mm
Please note: The lock latch must be adjusted to the desired DIN direction before installation!
The gates can be used as DIN left or right hinges. You can combine the gates in any variant as a double gate and also in combination with asymmetrical (different lengths) gate systems.
planeo
planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.
item no.: DSM_TORM1_Ant_conf
- medium version
- robust double bar
- additionally powder coated
- durable rust protection
- timeless look
Technical data
| item no. | DSM_TORM1_Ant_conf |
|---|---|
| Piece per package | 1 |
| Style | Klassisch |
| Fence type | Doppelstabmattenzaun |
| Shipping group | XL |
| Manufacturer | planeo |
| Material | Metal |
