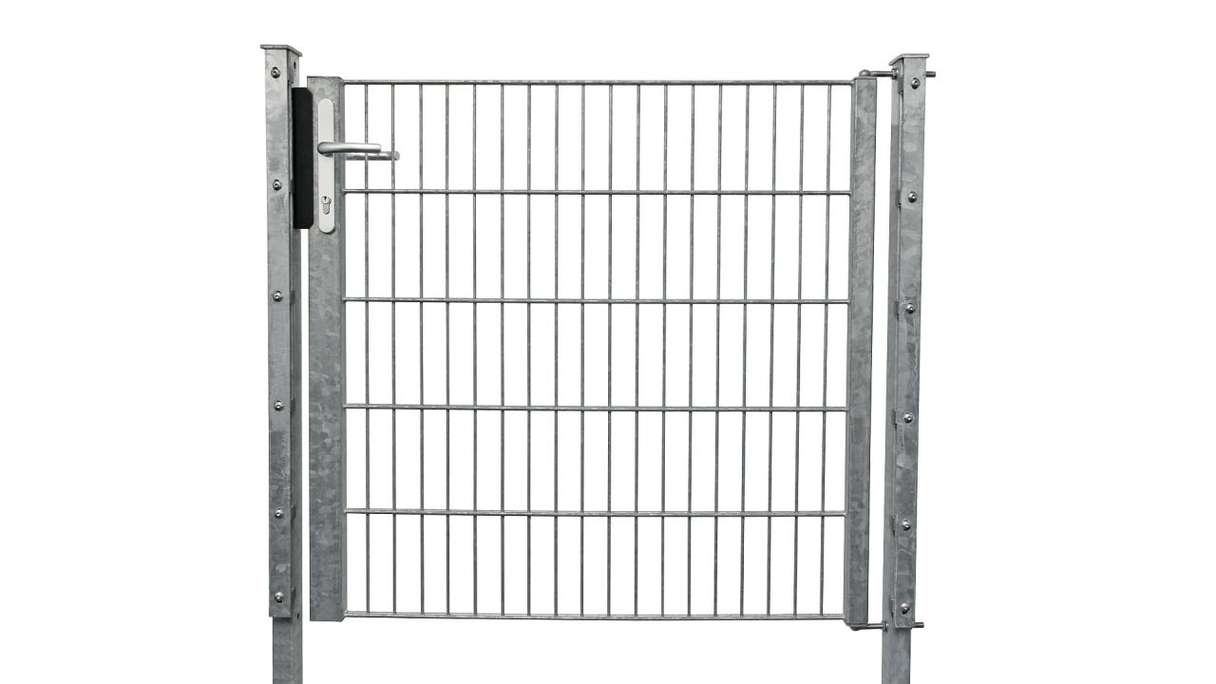

Universal door light 1-leaf. hot-dip galvanised - W 1090 mm incl. gateposts

The universal gate in light version has a 60/40/2 mm square tube post.
The gate can be adjusted as desired by means of hanging screws and can be opened by 180°.

The heavy meshes have two horizontal and parallel wires with a diameter of 8 mm. In between, vertical wires with a thickness of 6 mm together form the mesh look.

• Mesh: 50/200 mm

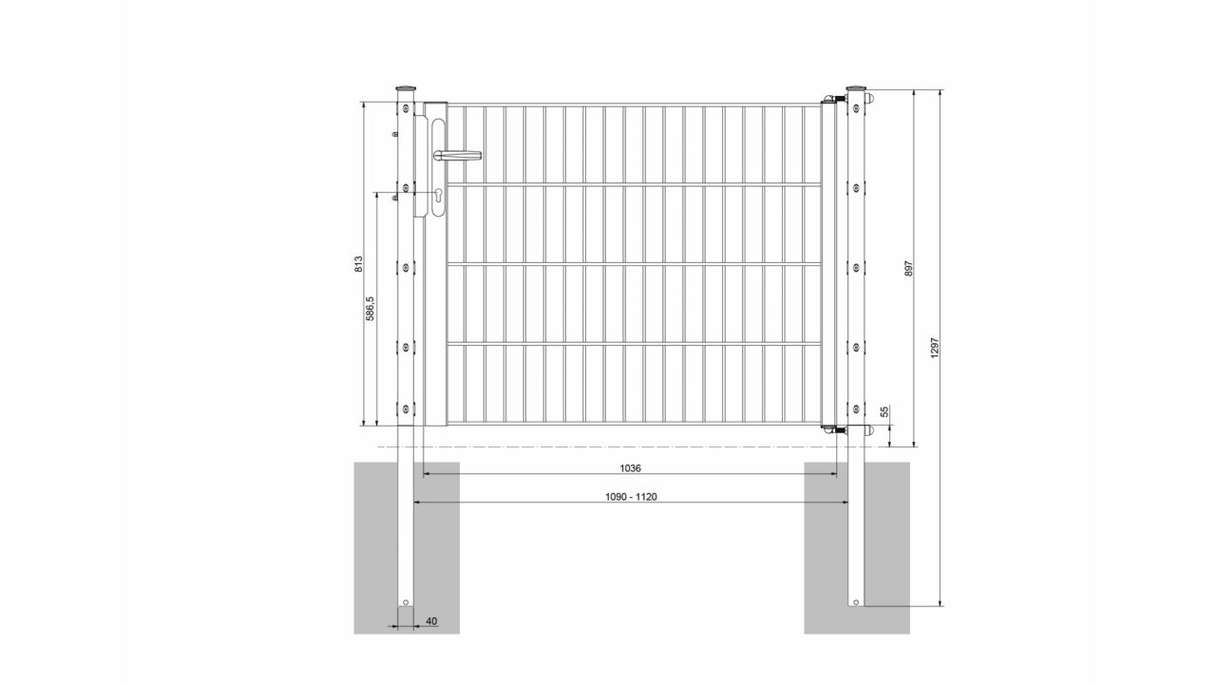

• Distance to post: 109-112 cm

Scope of delivery:
• Rectangular 2-sided frame: 60/40 mm
• Square posts: 60/40/2 mm
• Gate infill: double rod mesh 8/6/8 mm
• Adjustable hanging screws M12

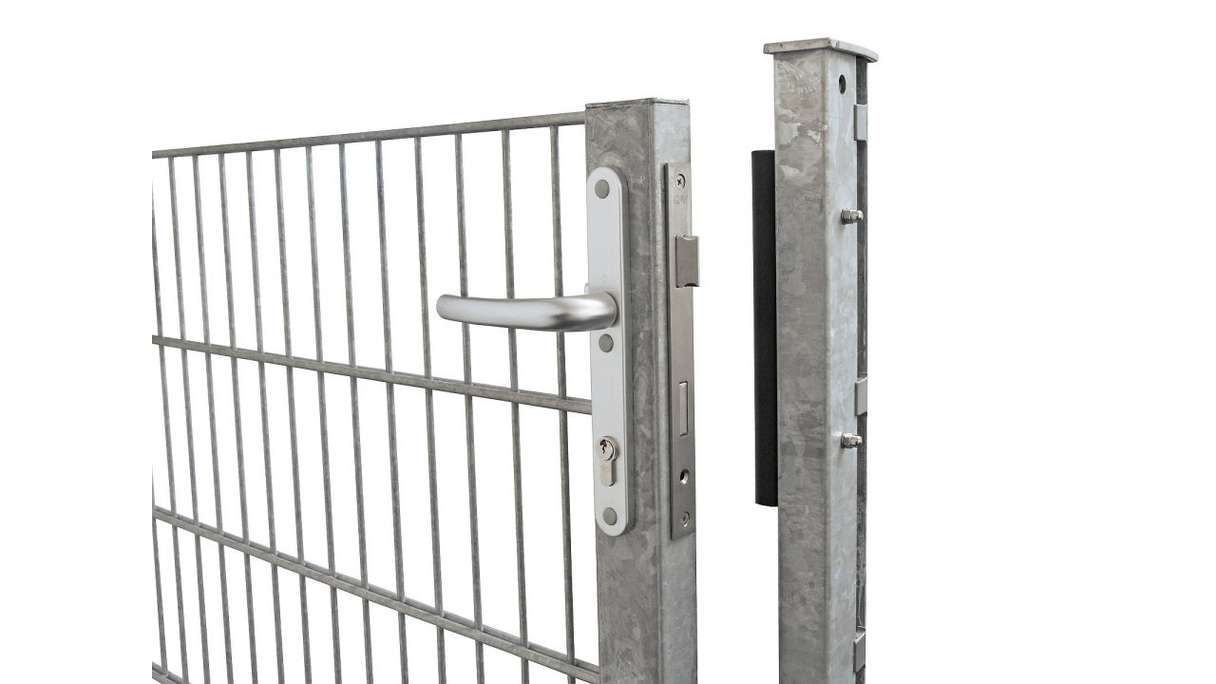

• Aluminium lever handle set
• Stop bar can be used DIN left/right
• Prepared for profile cylinder 31/31 mm

Please note: The lock latch must be adjusted to the desired DIN direction before installation!

The gates can be used as DIN left or right hinges. You can combine the gates in any variation as a double gate and also in combination with asymmetrical (different lengths) gate systems.
