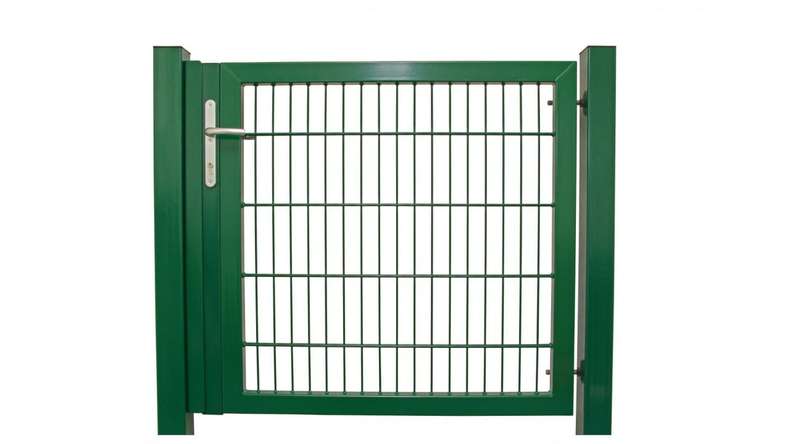

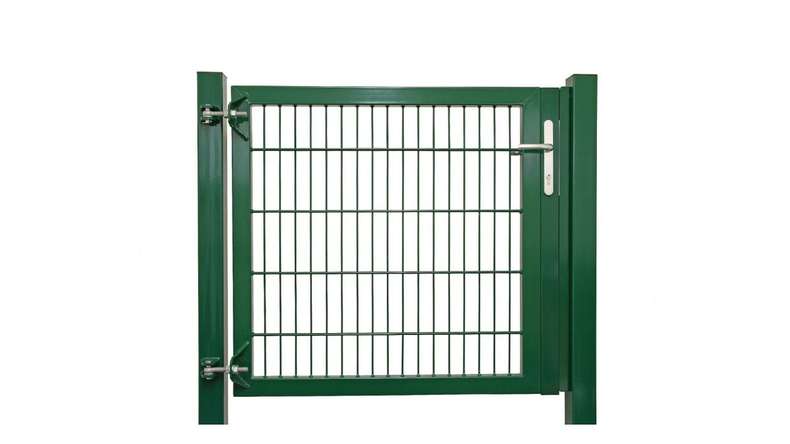

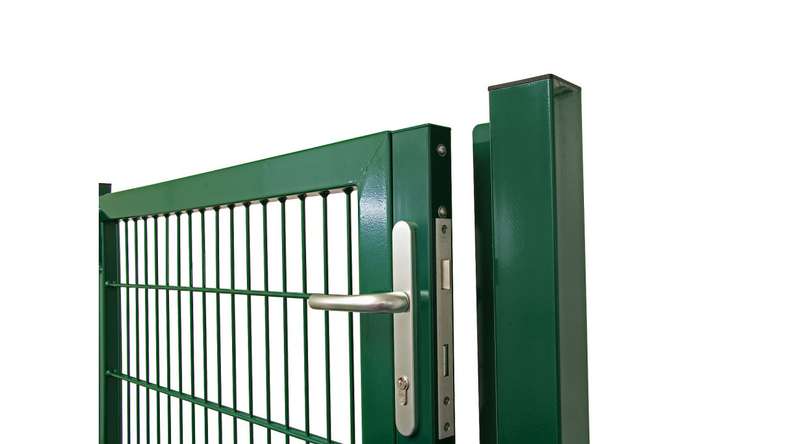

Universal door heavy 1-leaf moss green incl. gateposts

The heavy-duty universal gate has an extra robust square tube post.
The gate can be adjusted as required by means of eyebolts and can be opened by 180°.

The heavy meshes have two horizontal and parallel wires with a diameter of 8 mm. In between, vertical wires with a thickness of 6 mm together form the mesh look.

• Machine width: 50/200 mm
• Distance to posts: 112.5/132.5/157.5/212.5 cm

Scope of delivery:
• Square surrounding frame: 60/40 mm
• Square posts: 80/80/3 mm
• Gate infill: Double rod mesh 8/6/8 mm
• Adjustable hangers with M16 eyebolts
• Aluminium lever handle set
• Stop bar DIN left/right usable
• Prepared for profile cylinder 31/31 mm
• 2 fence connection strips
• Hook screws according to height

Please note: The lock latch must be set to the desired DIN direction before installation!

The gates can be used as DIN left or right hinges. You can combine the gates in any variant as a double gate and also in combination with asymmetrical (different lengths) gate systems.
