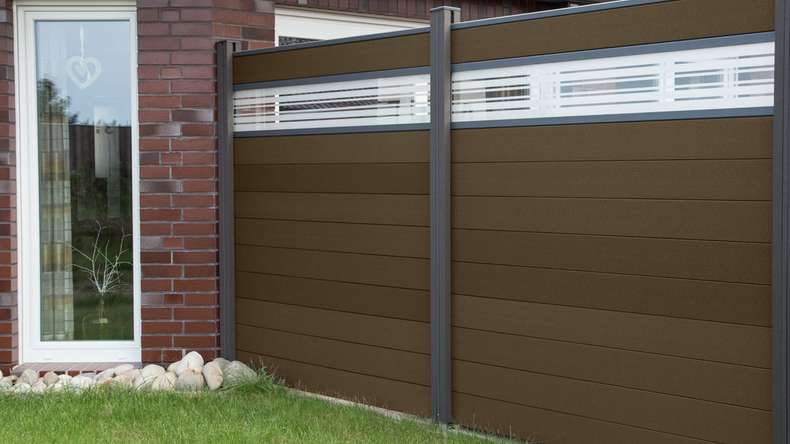

planeo Solid - garden fence design panel Glas30 Terra

Privacy fence plug-in system kit 180x180cm with design element Glas30

    • UV and weather resistant.
    • Easy to clean with lukewarm water and a brush.
    • Heavy soiling can be removed with pressure blasting.
    • No annual maintenance required as with wooden fences.

    Posts must be ordered separately!

    Samples refer exclusively to the individual profiles and not to the design elements!

› Technical Details
item no. pz111830000

Request a quote now

- 19 %

UVP 416,95 €

Statt 405,90 €

337,90 €
1,00 Set for 337,90 €
incl. VAT - plus €144.95 shipping costs for DE  XL

Your delivery date: until Thursday 8. August

  • Customer service until 6pm¹ - personal & close
  • DIY Videos - DIY instructions

We just need your E-Mail and shipping address.

Feel free to add more samples to your sample cart afterwards.


You want to redesign your home? Get inspiration with our high quality original floorboards! Order your premium sample package now and experience the quality of our products up close.

  • Shipped with their original measurements
  • Per article only one original floorboard is possible.
  • Delivery time: within three days after receipt of payment.
  • With voucher code for the next online order.

Order now Premium-Sample package!

Premium sampleprice:


Advantages over wooden fences:

  • maintenance-free and resistant
  • planeo BPC privacy fences(bamboo polymer composite) have a high resistance to moisture, insect and fungal attack. Annual maintenance by re-oiling or painting the fence elements is not necessary.
  • easy to clean and weather resistant
  • Changing weather conditions and UV radiation have little effect on the BPC privacy screen. The robust BPC material is easy to clean with lukewarm water, a brush or a pressure washer.

    Included in the set (180x180cm):

    • 10 panels
    • 1 design panel Glas30 incl. adapter strips
    • 1 end profile
    • 2 spacers
    • Brush seal

    For one element (180 x 180 cm) you need:

    • 2 mullion caps
    • 1-2 post cover strip*
    • Set in concrete: 2 posts
    • Dowel-on: 2 posts + GJ 48 brackets
    • additional design elements glass/aluminium (optional)
    • for each additional 180 cm set 1 additional post

    *For corner installation, 3 groove sides are available on the aluminium post for single profile mounting. This means that the open grooves can be closed off with the post cover strips.

    The posts are not included in the set and should be ordered separately.

  • simple plug-in system
  • Robust material
  • weatherproof
  • timeless appearance
  • low-maintenance

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

Technical Details
item no. pz111830000
Manufacturer planeo
Width in mm 1800
Height in mm 1800
Thickness in mm 19
Material WPC / BPC
suitable for Terrace, Garden
EAN 4250260954421
Collection Gardence Strong
Colour brown
Fence type Privacy fence, Interlocking fence
Piece per package 1
Shipping group XL
Style Modern
Variant Glas 30
Weight 50,00 kg/Packing
Package Content 1 Set
Show all data ▼

We will help you with your questions!

A specialist adviser will be happy
to advise you personally.

☎ 05222 960 4810
Mon - Fri: 9am - 6pm
Sat: 9am - 2pm

Product questions

Installation guide for the garden fence

Variant: DIY Block

1. preparation

To begin with, determine the course of the fence and the position of the posts by marking them. The measurement for the distance results from the posts and the fence elements. Dig out the post holes and draw a line for the fence course.

ATTENTION: Dig the post holes at least 30x30x50 cm (for WPC 30x30x80 cm).

2. position the posts

Before concreting the posts, mount the spacer. Insert it from above into the groove of the post at the previously marked position. Now fix it with the self-tapping screw. Slide the insertion strips into the 3 surrounding grooves and fix them with masking tape during assembly.

Before mounting, it is imperative to follow the official installation instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!

3. insert the posts

The posts can then be placed in the excavated foundation holes. Staple the first post to the defined height using battens and screw clamps. Then align all axes using roof battens, screw clamps and a spirit level. Finally, check at the top of the posts with the spirit level that all posts are at the same height.

4. set the posts in concrete

Moisten the foundation hole with a watering can. Then fill about 10-15 cm of concrete dry mix into the hole and pour water over it. Then let the mixture soak in. In between, you can compact the concrete with a batten. Repeat the process up to the top edge and then smooth the concrete.

ATTENTION: The posts should be cleaned before the drying time.

5. insert elements

To minimise noise, it is advisable to place the brush seals in the posts. Now insert the profiles one by one directly on the spacers.

Tip: Here you can also vary with glass elements and Glow fence lighting strips.

6. finish

Finally, cover the last plug-in fence profile with the finishing strip. The post caps are also attached now. If necessary, the posts can be shortened with an angle grinder and a cutting disc, then the cut edges are sealed with zinc spray.

What you will need to make it yourself


  • Posts
  • Fence elements
  • Brush seal
  • Starting clips
  • Concrete


  • Cordless screwdriver
  • Circular saw
  • Folding rule
  • Spirit level
  • Pencil
  • Mason's cord
  • Wedges
  • Spade


  • Light strips
  • Door element
  • Angle grinder
  • Cutting disc
  • Zinc spray
  • Connector

Difficulty level:

  • Medium
