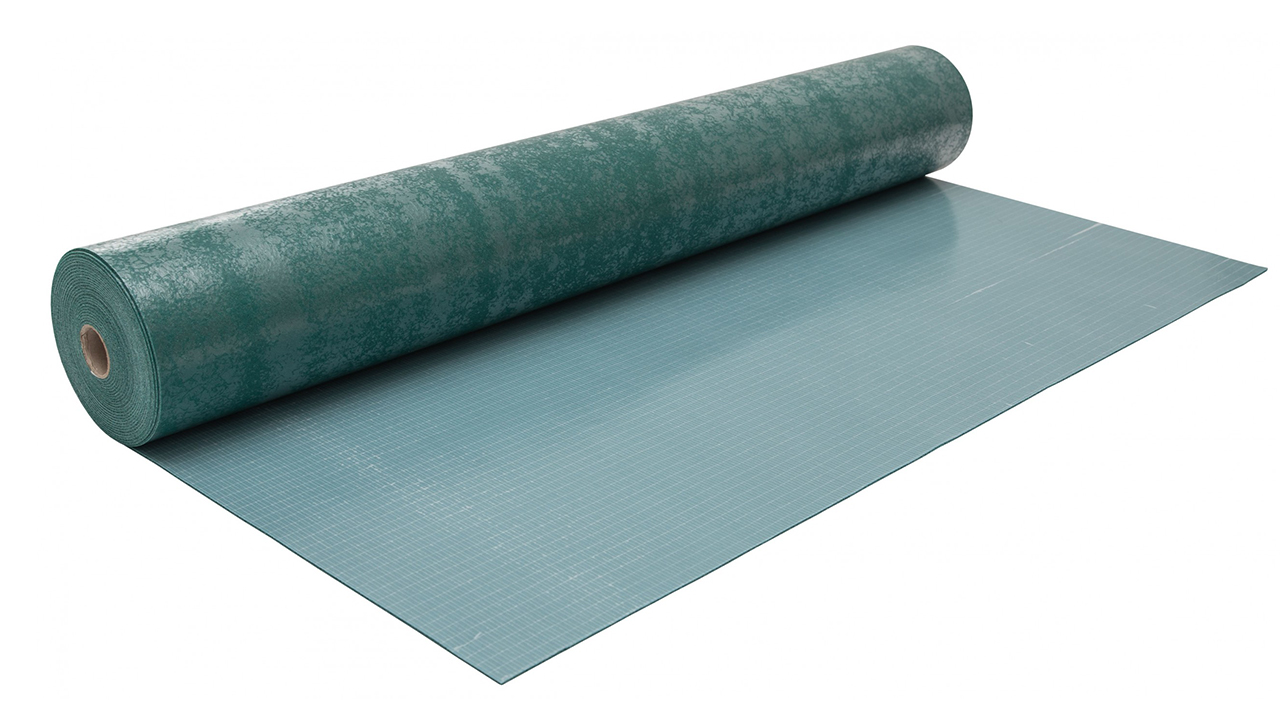

planeo impact sound insulation SoundFix 8m²

High-quality impact sound underlay as an alternative to fixed bonding

Item no.: soundfix

Blue Angel certified - Healthy & ecological
The alternative to fixed bonding
Walking sound reduction up to 50%.
Impact sound reduction up to 18 db.
Environmentally friendly and recyclable.
Ideal for underfloor heating.
Weight: 1.7 kg / m²

Offer request

Description

Technical data

DIY - Videos

Product description

Blue Angel certified - Healthy & ecological
The alternative to fixed bonding
Walking sound reduction up to 50%.
Impact sound reduction up to 18 db.
Environmentally friendly and recyclable.
Ideal for underfloor heating.
Weight: 1.7 kg / m²

The planeo SoundFix impact sound underlay simulates a firm bond with the subfloor and is suitable for hard design floors, laminate and parquet floors. This results in greater impact sound and noise reduction than with conventional underlays. Furthermore, it ensures a higher permeability value for underfloor heating systems.

Processing instructions:

Lay out the individual strips butt to butt, but not under tension, with the "TOP" marked (white chequered) FOLIENSE SIDE UP at an angle of 90° against the laying direction of the upper covering and with a distance of 5mm to the wall and all rising building components. For further installation tips, please see the installation video.

Dimensions: Thickness 2mm | Width 1m | Length 8m (roll)
Weight per unit area: 1.7 kg/m²
Pressure resistant up to 22 t/m²
Sound reduction up to 50% and impact sound reduction up to 18db
Perfectly suitable for underfloor heating
Thermal resistance: 0.01 m²K/W according to DIN CEN/TS 16354
recyclable, renewable raw material

planeo

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.

item no.: soundfix

Technical data

item no.	soundfix
Piece per package	1
suitable for	Parkett, Laminat
Length in mm	8000
Width in mm	1000
Shipping group	S
Manufacturer	planeo
Thickness in mm	2

Downloads

Print page

DIY step by step

Variant: DIY instructions

button

1. Substrate preparation

The impact sound insulation can be installed on hard, permanently dry and level sub-floors. The surface should be swept and dust-free before processing. Allow the insulation mat to adapt in the room for about 24 hours before installing it.

Tip: When placing over screed, we recommend priming the screed to ensure the underlay has the best load-bearing capacity.

button

2. Lay out the underlay

Observe the official laying instructions provided in every package before laying the rolls, otherwise any warranty or guarantee claim will be invalid.

The initial stage is to plan the floor's installation direction. The footfall sound insulation is placed perpendicular to the parquet or laminate laying direction. Roll the first length against the wall and cut it with a cutter knife. The next lanes will be constructed end to end.

button

3. Glue the underlay

To remove the foil, fold the first strip of the underlay approximately halfway and cut the raw edge with the cutter knife. By pulling at the strip’s end, the strip can now be correctly positioned once more. As a guide, use the cut edge of the adjacent mesh. A cork float can be used to remove bumps and air pockets. As soon as half of the first sheet has been glued, the other end of the sheet is folded over, the protective film removed and pulled back. You then eliminate the cracks in this case as well. Continue this technique until all the strips are bonded together.

button

4. Glue the bottom

Lay out the first row of flooring, using spacers to keep the edge distances to the wall consistent. After the first row of flooring has been installed, cut the sheeting slightly at the bottom of the installed row. Be cautious not to sever the impact sound insulation. The film can then be removed after it has been cut. The floor planks are now properly aligned, attached to the adhesive surface of the insulation, and pushed. For the following rows, remove the film by sight and put the planks on until all the planks are glued.
