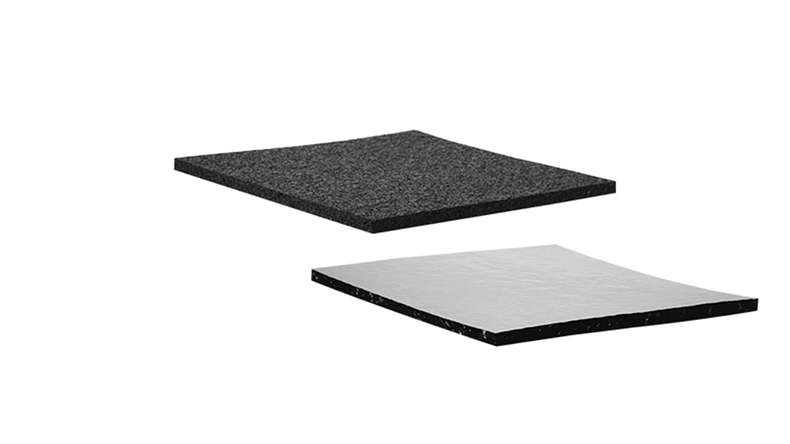

planeo terrace pad 8mm aluminium laminated - for roof terraces

One pad can be divided into 8 pads if no stilt supports are used. Due to heat development on flat roofs with foils - use rubber underlay with aluminium lamination.
Item no.: 012001001

Specialised building protection pad for terrace construction on sensitive substrates such as roofing membranes.

  • Protection for roofing membranes: aluminium lamination prevents plasticiser migration and material embrittlement.
  • Constructive wood protection: 8 mm thickness prevents waterlogging and ensures optimum ventilation.
  • High resistance: Thermally stable and ideal for the high temperatures on flat roofs.
  • Impact sound insulation: Vibration-absorbing rubber granulate effectively reduces walking noise.
  • Flexible format: Easy to divide into 8 smaller units for customised installation.

Note: The aluminium-laminated side must always face downwards towards the substrate.

Specialised building protection pad for terrace construction on sensitive substrates such as roofing membranes.

  • Protection for roofing membranes: aluminium lamination prevents plasticiser migration and material embrittlement.
  • Constructive wood protection: 8 mm thickness prevents waterlogging and ensures optimum ventilation.
  • High resistance: Thermally stable and ideal for the high temperatures on flat roofs.
  • Impact sound insulation: Vibration-absorbing rubber granulate effectively reduces walking noise.
  • Flexible format: Easy to divide into 8 smaller units for customised installation.

Note: The aluminium-laminated side must always face downwards towards the substrate.

Free quote
Description
Technical data
DIY - Videos

Product description

The aluminium-laminated planeo decking pad (8 mm) is a specialised accessory for decking construction that has been specially developed for laying on sensitive substrates such as roof terraces with membrane waterproofing. It combines structural protection with constructive wood protection.

  • Protection for roofing membranes: The integrated aluminium lamination prevents plasticiser migration between the rubber granulate underlay and the roofing membrane. This protects the waterproofing from damage and material embrittlement in the long term.
  • Effective barrier against waterlogging: With a thickness of 8 mm, the pads act as spacers between the substructure and the substrate. They interrupt the capillary effect, promote ventilation and protect the wood from rotting.
  • High thermal resistance: High temperatures occur on flat roofs in particular. The material combination is designed to withstand these conditions without losing its insulating and protective properties.
  • Impact sound insulation and levelling: The rubber granulate has a vibration-damping effect and reduces the transmission of walking noises. In addition, slight unevenness in the subfloor can be flexibly levelled out.
  • Flexible format: A large pad (approx. 200 x 185 mm) is pre-structured in such a way that it can be easily divided into 8 smaller units if required (e.g. if no pedestal supports are used), enabling installation to be customised.

Note: The aluminium-laminated side must always face downwards towards the substrate (e.g. towards the PVC roofing membrane) in order to achieve the full protective effect.

item no.: 012001001

Technical data

item no. 012001001
Manufacturer planeo
Length in mm 200.0
Width in mm 185.0
Thickness in mm 8
EAN 4062212164228
Weight 0.21 kg / Packing
Piece per package 1.0
Shipping group XS
Package Content 1 Pc
