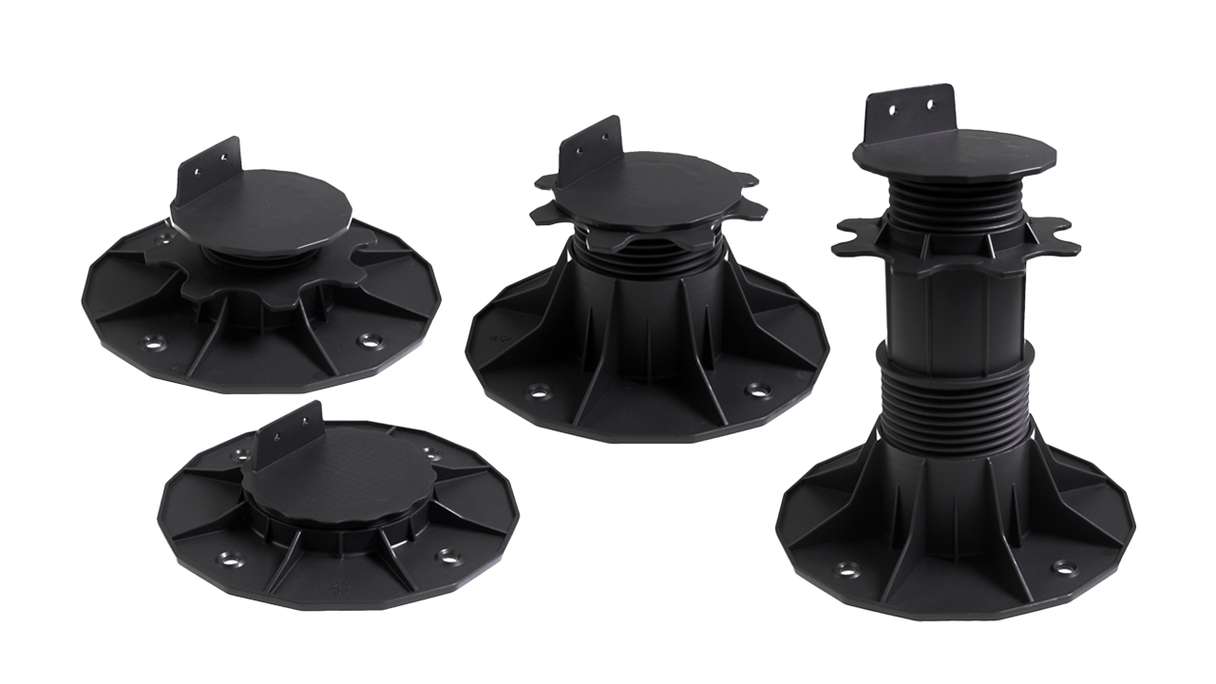

planeo swivel foot terrace bearing for terrace boards from 18mm to 220mm

Pedestal bearing for terrace decking substructure

Item no.: KC-004_conf

Easy to adjust - The swivel base allows infinitely variable height adjustment from 18 to 220 mm and therefore adapts perfectly to uneven surfaces.
Durability & stability - Made from high-quality, weather-resistant materials, the swivel base guarantees a long service life and a stable patio.
Time-saving installation - The simple swivel mechanism enables quick and uncomplicated height adjustment, minimising installation work.
Optimum ventilation - The swivel base ensures a constant distance between the decking boards and the ground, which promotes ventilation and prevents the substructure from rotting.
Versatility & flexibility - The decking support is suitable for all types of decking substructures and therefore offers maximum flexibility in planning and installation.
Cost savings through reduced use of materials - The height adjustability allows the substructure to be perfectly aligned, reducing the need for additional material or costly levelling work.

Easy to adjust - The swivel base allows infinitely variable height adjustment from 18 to 220 mm and therefore adapts perfectly to uneven surfaces.
Durability & stability - Made from high-quality, weather-resistant materials, the swivel base guarantees a long service life and a stable patio.
Time-saving installation - The simple swivel mechanism enables quick and uncomplicated height adjustment, minimising installation work.
Optimum ventilation - The swivel base ensures a constant distance between the decking boards and the ground, which promotes ventilation and prevents the substructure from rotting.
Versatility & flexibility - The decking support is suitable for all types of decking substructures and therefore offers maximum flexibility in planning and installation.
Cost savings through reduced use of materials - The height adjustability allows the substructure to be perfectly aligned, reducing the need for additional material or costly levelling work.

Offer request

Description

Technical data

DIY - Videos

Product description

For height compensation of decking boards on even & uneven subfloors
approx. 2 supports are required per running metre of substructure
Diameter lower leveling foot - 160 mm
Diameter upper support - 95 to 108 mm
material: robust recyclable polypropylene plastic
resistant to weather and temperatures from (-30°) - (+60°)

item no.: KC-004_conf

Technical data

item no.	KC-004_conf
Manufacturer	planeo
Type	Carrier
Piece per package	1
Shipping group	XS
Package Content	1 Pc
