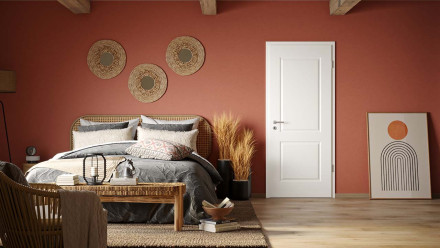

Set stylish accents in your home with the planeo interior lacquer door - Geraldo 9010 whitelacquer.
The moulded surface of this model has been elaborately treated with a multi-layer white lacquer finish. Solid stability is guaranteed with a solid chipboard door panel. The standard round edges create a noble look that harmoniously enhances your interior design.
- German brand quality
- Centre layer made of stable solid chipboard
- no colour differences between door edge and door surface
- high-quality white lacquer finish
- Door leaf thickness of approx. 40 mm
- three-sided rebated door leaf according to DIN 13 x 25.5 mm
- rounded door edges - impact-resistant and robust
Included as standard
- 2 drill-in hinges 3-piece V 0020 nickel-plated
- Bunt beard lock- 55 mm backset, 72 mm distance, forend 20 mm silver-coloured
Optional to order:
planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings.
We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.
|Floor seal||ohne Bodendichtung|
|Join||DIN 25,5x13 mm|
|Lacquer | Surface||White lacquer 9010|
|Light cut-out||ohne LA|
|Lock faceplate||Stulp 20mm silberfarbig|
|Piece per package||1|
|Package Content||1 Pc|
Show all data ▼
|Planeo Tür Einbauanleitung|
We will help you with your questions!
A specialist adviser will be happy
to advise you personally.
☎ +49 5222 960 4810
Mon - Fri: 9am - 6pm
Sat: 9am - 2pm
Variant: DIY instructions
The first step is to acquire accurate measurements in order to order the correct door. Check the wall's level using a spirit level. Begin by determining the height from the floor. Then, in the finished state (with plaster and covering), measure the wall thickness at three points: top, middle, and bottom. Apply the same logic to the other side. Finally, the width of the door is measured at all three places. Determine the door hinge once the measurements have been determined and noted.
ATTENTION: If the floor has not yet been constructed, add the construction height of the floor to the measurement to ensure that the door is the correct height. When measuring the breadth, the width of the tiles on the wall is also considered.
The door and all other components should be stored horizontally in the packs in the room where they will be assembled for at least 48 hours before assembly. This allows the material to adjust to ambient temperature and reduces the amount of "labour" required after installing. Before processing, arrange the components. Open the packages carefully so that the cutter knife does not damage the door/frame.
Before laying, the official assembly instructions provided in each item must be followed, or any warranty and guarantee claims will be null and invalid!
To assemble the frame together, first glue and screw the various pieces together. Connect the two frame components by placing the wooden plates into the joints after applying adhesive to the mitred surfaces of the longitudinal and transverse linings. Insert the connector into the hole in the frame and tighten it with a screwdriver. Metal clips are then used to secure the elements. A wet cloth can be used to remove excess glue. This is then done on the opposite side. The structure is then installed around 3 mm above the floor to protect it from moisture (e.g. cleaning water). As soon as it is in position, use a frame clamp to align it and foam it using 2-component foam. The clamps can be removed after curing. The ornamental cladding is now fixed and in place.
Tip: As an alternative to the clamps, you can also work with wedges and wooden slats.
You can hang the door after installing the frame and ornamental panel and inserting the hinges. Install the hinges. Remove the door's storage feet and hang it on the hinges provided.
The door handles are finally installed. Drill holes for the door handles using the provided drilling pattern. On both sides, drill a rough fray. The fittings are then carefully inserted and assembled. Finally, insert the plunger and install the ornamental panel.
To make your own, you will need this
- Hinge V4400 (for doors with 3-part hinge)
- Handle set
- 2-component assembly foam
- Door clamp
- Cordless screwdriver
- Hex key
- Spirit level
