Wineo 1000 is the ecological flooring for a homely and healthy home. It meets your requirements for smart and healthy living right down the line.
- Environmentally conscious and ecological organic flooring Without chlorine and softeners, it is absolutely harmless in terms of health and the environment. The resilient floor coverings, which bear the "Blue Angel" seal of quality and other international certificates, can be laid with confidence in children's rooms, bedrooms or living and dining areas.
- Dimensionally stable thanks to Fleece TEC system The integrated Fleece TEC system is a tile backing at the bottom that counteracts deformation. Even when exposed to sunlight, the organic floor does not change its shape.
- Easy cleaning and maintenance Thanks to the very hard-wearing PU coating, the maintenance effort is very low and cleaning costs are reduced in the long term. For example, there is no need for initial care and basic cleaning.
As a brand of the internationally active company Windmöller, Wineo operates in over 70 countries with quality floors for a wide range of applications. Originally created through the merger of the family-owned companies Windmöller and Witex, the East Westphalian group based in Augustdorf has been operating under the Wineo name since 2013. The sustainably produced floor coverings from Wineo feature the "Made in Germany" seal of quality and provide the optimum flooring solution for private areas, public facilities and light industry. All Wineo products undergo a 7-fold quality control and meet the highest standards. The 3rd generation family business is aware of its high social and ecological responsibility and has been focusing on environmentally compliant product design for years.
At Wineo you have the choice between PURLINE organic flooring, design floors for gluing or clicking as well as laminate flooring in different usage classes and formats. Additionally, the company offers skirting boards, aluminium profiles, insulation mats, and more. Create a stylish effect in your rooms with the resilient floor coverings in trendy designs from Wineo!
| item no. | PLC320R |
|---|---|
| Manufacturer | Wineo |
| Collection | PURLINE |
| Collection variant | 1000 |
| Length in mm | 642 |
| Width in mm | 330.5 |
| Thickness in mm | 5 |
| Wear class | 32 Commercial (moderate) |
| suitable for | Business, Bath, Kitchen, Bedroom & living room, Hallway & Corridor |
| installation pattern | Tile format |
| Installation type | click |
| Sorting (grain) | natural/classic |

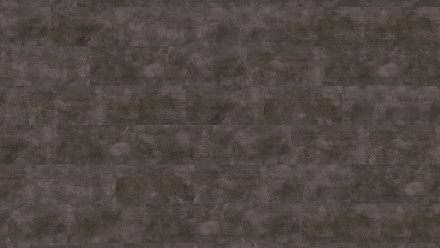

| Look | Concrete effect |
| Underfloor heating | suitable |
| Warranty | 10 Jahre Privat |
| EAN | 4017268428626 |
| Style | Beton |
| Structure | PVC free design flooring |
| Joint | Micro bevel |
| Piece per package | 10 |
| Click system | LocTec |
| Slip resistance | R9 |
| Shipping group | S |
| Click variant | UniClic |
| Colour | anthracite |
| Weight | 19,00 kg/Packing |
| Package Content | 2.12 m² |
|
Show all data ▼
|
|
| Downloads | |
Wineo 1000 stone (click with LocTec) - Technical data sheet EN
|
|
|
Wineo 1000 stone (click with LocTec) - Installation instruction EN
|
|
|
Wineo 1000 stone (click with LocTec) - Cleaning and care instructions EN
|
|
We will help you with your questions!
A specialist adviser will be happy
to advise you personally.
☎ +49 5222 960 4810
Mon - Fri: 9am - 6pm
Sat: 9am - 2pm
Variant: DIY-Instruction
button
Check the subfloor. Any unevenness exceeding 3mm should be sanded down or filled with a floor levelling compound. Then clean the surface to be laid with a hoover.
CAUTION: Never install vinyl over a soft subfloor such as carpet, cork or any type of foam underlay.
button
The vinyl planks should be stored horizontally in the room where it is to be installed for at least 48 hours before the installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after installation.
button
Before laying the floor, it is imperative to follow the official laying instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!
Before laying out the floor, check the wall you are starting on and make sure it is at right angles to the opposite wall. If the impact sound insulation is not already integrated, we now recommend spreading out the insulation.
button
Tips on the drop-down click system: In order to achieve the most uniform appearance of the floor, it is advisable to install panels from different packages mixed together. You should start laying in one corner (left) and starting from the wall. Lay the first plank with the tongue side facing the wall. Then snap the second plank into the first from the top on the face side. In the second row, place the plank at an angle to the long side of the row already laid and fold it down. With the help of a rubber mallet, you can lock the face of the following planks by gently hitting them. To cut a plank, now take measurements and mark the plank. Then take an angle and tear and break the plank with a multi-purpose knife/cutter.
button
The last plank of a row should be the same length as the first plank. Place the spacers against walls, door frames, fixed wall cabinets, kitchen units etc. so that you have an expansion gap of approx. 5-10mm for underfloor movement or expansion of the product. To install the last row, it is recommended to use the floor layer's jointing iron from the accessories. When using skirting boards, make sure that the expansion joint is covered by the skirting board. If the floor is sealed, e.g. in the bathroom, the PE round cord is now inserted into the expansion joint and the floor sealed with a silicone joint.
button
Finally, cut off the PU film approx. 2 cm high and attach the skirting boards.
Material:
- Click vinyl flooring
- Impact sound insulation
Tools:
- Professional cutter knife
- Angle
- Pencil
- Hammer
- Tapping block
- Rubber mallet
- Measuring tape
- Spacer
optional:
- Skirting boards
- PE vapour barrier*
Working time:
- for a room size of 15-20 m² approx. 4-5 hrs.
Difficulty level:
- easy
*required for floors with HDF core board and cork impact sound insulation
