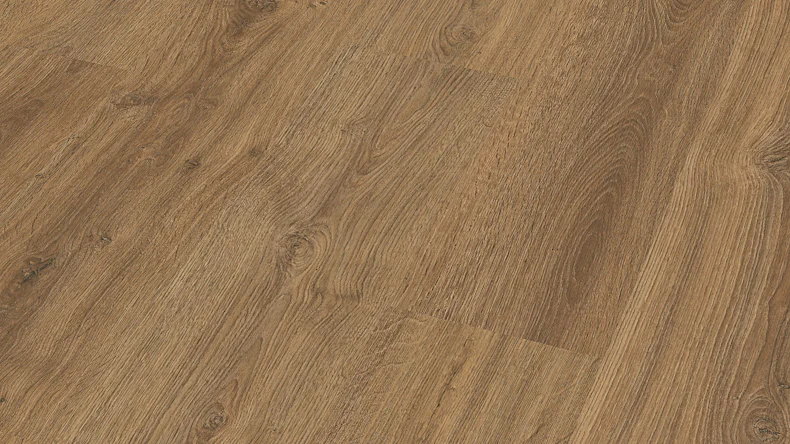

planeo laminate impresses with its good quality and high functionality. The floor coverings are both easy to clean and robust. The modern and at the same time natural look is also a decorative enrichment.
planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings. We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.
| item no. | LAM-2222 |
|---|---|
| Manufacturer | planeo |
| Length in mm | 1288 |
| Width in mm | 198 |
| Thickness in mm | 8 |
| Wear class | 32 Commercial (moderate) |
| installation pattern | Plank pattern (1-plank) |
| Installation type | click |
| Look | Wood effect |
| Wood type | Oak |
| Underfloor heating | suitable |
| Warranty | 25 Jahre Privat, 5 Jahre Gewerbe |
| Special features | Blue Angel, Damp-proof laminate |
| EAN | 4062212190548 |
| Click system | Multiclic |
| Click variant | UniClic |
| Colour | brown |
| Joint | No bevel |
| Material | Jute |
| Piece per package | 10 |
| Range of application | Residential, Commercial |
| Shipping group | M |
| Weight | 19,28 kg/Packing |
| suitable for | Bath, Kitchen, Bedroom & living room, Hallway & Corridor |
| Package Content | 2.55 m² |
|
Show all data ▼
|
|
| Downloads | |
planeo Laminate - Technical data sheet EN
|
|
|
planeo Laminate - Installation instruction EN
|
|
|
planeo Laminate - Warranty conditions EN
|
|
We will help you with your questions!
A specialist adviser will be happy
to advise you personally.
Variant: DIY-Instruction
button
The substrate should be firm, even, clean, permanently dry, load-bearing, free of cracks and resistant to tension and compression. Any unevenness exceeding 3 mm must be sanded down and levelled with a floor levelling compound.
CAUTION: Never lay laminate over a soft subfloor, e.g. over carpet or on unsuitable underlays.
button
The planks should be stored horizontally in the room in which they are to be installed for approx. 48 hours before the installation in the packages. This will allow the material to acclimatise to the room temperature and it will not "work" as much after the installation.
button
Start by cleaning the surface to be laid with a hoover. Lay out the vapour barrier (for mineral subfloors) overlapping in the room. If the laminate flooring does not already have integrated impact sound insulation, we recommend that you lay the insulation butt to butt against the laying direction of the top covering and fix all overlaps with aluminium tape.
Before installation, it is imperative that you follow the official installation instructions that are included in each package, otherwise any warranty and guarantee claims will be void!
button
Tip: To achieve as uniform a floor appearance as possible, it is advisable to install panels mixed from different packages.
You should start laying in one corner (left) and starting from the wall. Lay the first panel with the tongue side facing the wall and place all the other panels against it. Depending on the collection, the next rows are first laid with the long side into the already lying planks and fastened by applying light pressure to the face side or first clicked in with the face side and the long side then clicks into place.
ATTENTION: A distance of approx. 10-15 mm must always be maintained between the floor covering and the wall as well as to all fixed components.
button
If possible, the last row should be half the width of the plank. To do this, please measure the exact width of the room before laying. Please also take note of the edge distances to the wall.
button
Finally, cut off the PE foil approx. 2 cm above the floor. The skirting boards can now be attached with a mounting adhesive or the special clips.
Material:
Tools:
optional:
Working time:
Difficulty level:
