Description
- Contents:
One package contains 9 elements with 3.4m².
- Resistant and weatherproof Thanks to the glass-fibre reinforced composite plastic, the façades withstand extreme outdoor weathering. The durable GRP material consists of a polyester resin base, which makes the façades hail-proof and impact-resistant.
- Practical processing The user-friendly fastening system of the external façade makes installation quick and easy. of the exterior façade. The façade cladding can be neatly fastened with the help of concealed screws or stainless steel nails.
- Base batten - 40/60mm cross-section: Insulation is fitted between base battens.
- Supporting battens - 30/50mm cross-section: This is screwed parallel to the counter or base battens at a distance of 40cm from each other (as rear ventilation for façade/panels).
For decades, Zierer Fassaden GmbH has been regarded as an expert for impact-resistant and break-proof polyester fibreglass on walls. The specialist in glass fibre reinforced plastic from Gronau in the western Münsterland, Nordrhein-Westfallen, participates in major national and international European trade fairs.

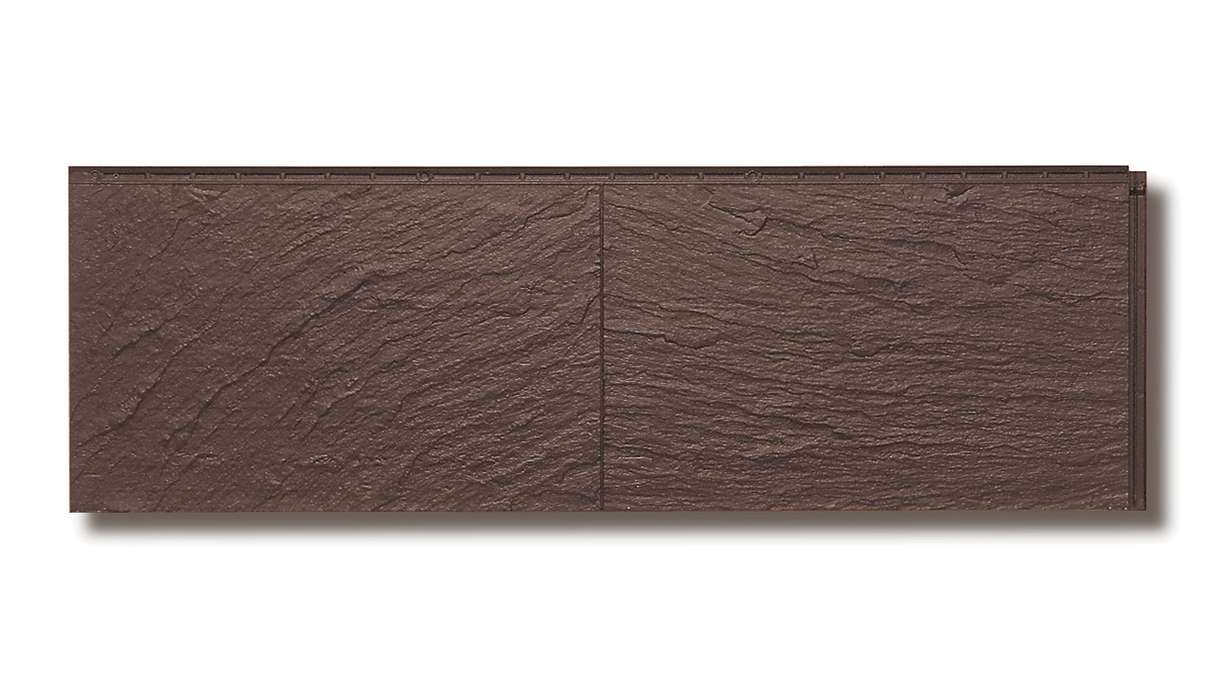

| item no. | ZI01811015 |
|---|---|
| Manufacturer | Zierer |
| Collection variant | SS1 |
| suitable for | Wall, Gable, Base |
| Look | Slate effect |
| Length in mm | 1115 |
| Width in mm | 359 |
| Thickness in mm | 14.5 |
| Material | Plastic |
| Colour | brown |
| Piece per package | 9 |
| EAN | 4399902003278 |
| Gloss level | silk |
| Shipping group | XL |
| Deck size | 1090 x 349 mm |
| Absolute dimensions | 1115 x 359 mm |
| Construction | Facade plate |
| Laying direction | horizontal |
| Laying |
Installation takes place on a vertical substructure at a distance of 25cm as a ventilated façade from bottom left to top right |
| Fastening |
by means of screws or nails in the screw groove of the façade panels |
| Number of fasteners | Countersunk screws V2A Torx3x35mm Requirement approx.11pcs./m² |
| Surface | leicht strukturiert |
| Weight | 25,09 kg/Packing |
| Package Content | 3.4 m² |
|
Show all data ▼
|
We will help you with your questions!
A specialist adviser will be happy
to advise you personally.
☎ 05222 960 4810
Mon - Fri: 9am - 6pm
Sat: 9am - 2pm
Installation guide of the Zierer Facade
Variant: DIY-Instruction
button
1. preparation
First, attach the substructure horizontally to the building. To ensure that the facade is well ventilated, attach the vertical supporting battens at a distance of 30 cm from each other. Now attach the start profiles and ventilation profiles horizontally aligned at the end of the battens.
ATTENTION: Please ensure that the distance of 3 cm to the substrate is maintained.
Before mounting, it is imperative that the official installation instructions, which are included in each package, are followed, otherwise any claim under warranty and guarantee will be void!
button
2. mounting the façade panels
The facade panels are mounted from left to right. At window areas, also mount end and corner profiles. Now you can install an additional lower ventilation profile. In the area of the inner corners, U-profiles are used, which have an insertion on both sides for the facade panels.
button
3. finish
In the last step, we recommend that you install an upper termination. This ensures that the roof slope is also well ventilated.
What you will need to make it yourself
Material:
- Exterior cladding
- Corner bracket
- U-profile
- Ventilation angle
- Starter rail
Tools:
- Screws
- Dowels
- Cordless screwdriver
- Chop saw or circular saw
