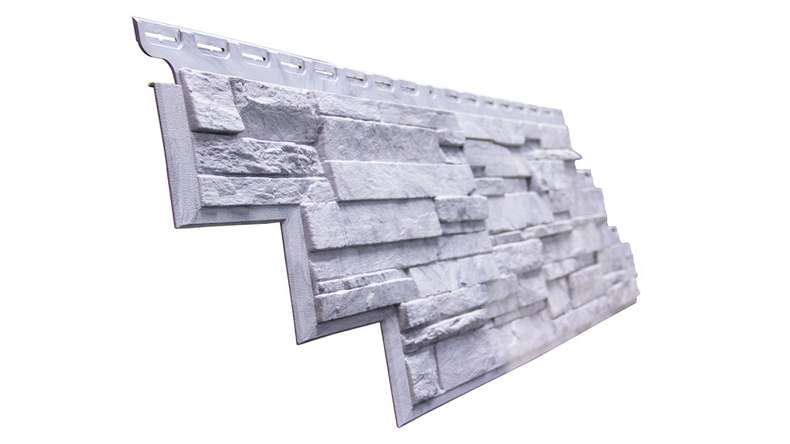

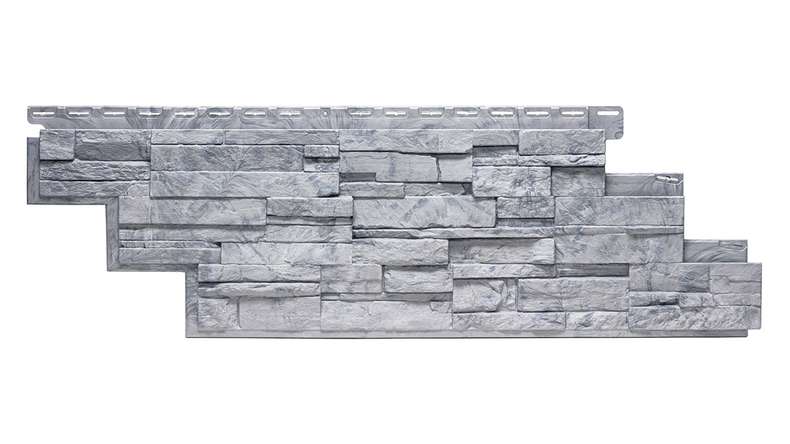

planeo stone-look façade panel - NoviStone Grigio 1054 x 334 mm

High-quality plastic façade panel in layered stone look

    • Easy and quick installation by one person.
    • Suitable for interior and exterior cladding.
    • Horizontal mounting.
    • Concealed fixing by means of stainless steel screws or nails.
    • Resistant to rot, cracking and fading.
    • Break and impact resistant even in frost.

    Important: Substructure see description - not available in the shop!

› Technical Details
item no. NK10061100

Request a quote now

planeo
Package price (2,32 m²):
€221.91
Price 1 m²:
€95.65
incl. VAT - plus €499.00 shipping costs for CH  XL

Include 5% blend

Your delivery date: until Monday 12. December

  • Storage at the desired date - free of charge for up to 90 days3
  • Customer service until 6pm¹ - personal & close
  • DIY Videos - DIY instructions
Description

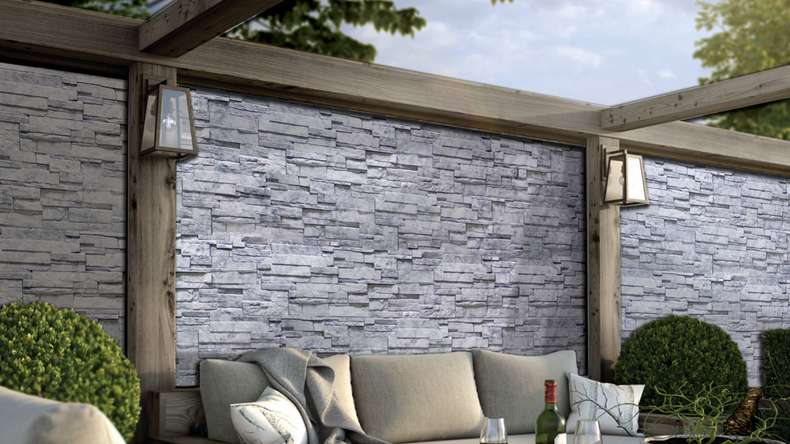

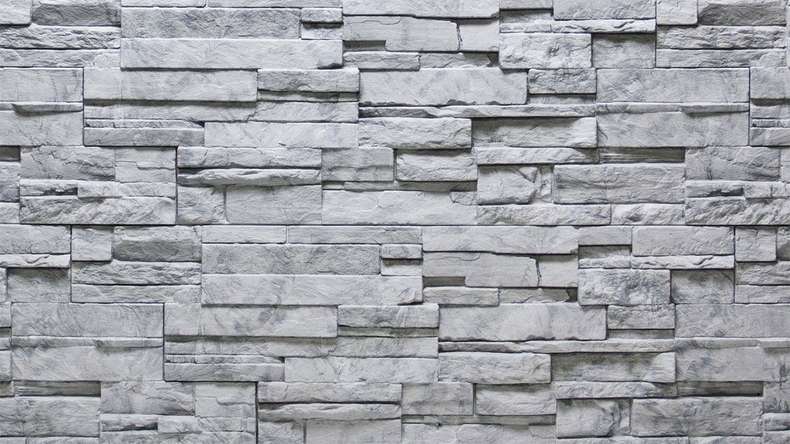

The planeo "NoviStone" façade panel gives your façade a rustic character with a selection of different layered stone decors that are sure to delight you. The beautiful 3D facing bricks can be applied effortlessly by one person over the entire surface or part of the surface.

  • Colourfast and durable
  • The façade panels are injection-moulded from high-quality special polymers, so that you will enjoy the impact-, break- and crack-resistant and rot-resistant façade cladding for decades. The material remains dimensionally stable even at extreme temperatures. A special colour coating also protects the façade from fading and fading caused by UV light.

  • Ventilated system
  • Because the façade panels are curtained onto a substructure, a rear-ventilated system for water vapour dissipation is created.

  • Installation
  • The façade panels are mounted horizontally to the substructure, which is mounted vertically to the masonry, using screw material. For finishing the corners, you can use matching 2-part corner elements in the matching stone look or modern corner façade profiles.

  • Easy maintenance
  • Thanks to the plastic material, the profiles are very easy to clean. You can completely dispense with varnish, stains or oils.

Your façade screw requirement:

  • 1 façade panel: 0.23m²
  • 10 elements/package: 2,32m²
  • 1 façade panel = 5 screws
  • 10 elements/package = 50 screws
  • approx. 15 screws are required per m²!

    Substructure recommendation:
  • Basic lathing - 40/60mm cross-section
    Insulation is fitted between base battens
  • Supporting battens - 30/50mm cross-section
    This is screwed parallel to the counter or base battens at a distance of 40cm from each other (as rear ventilation for façades/slabs/panels).

  • easy assembly and maintenance
  • Break and impact resistant
  • adapted to extreme weather conditions
  • dimensionally stable and durable

planeo is the brand for professional solutions with tested quality. In our extensive range, you will find first-class products for home and garden, from floors to wall coverings to decking: we offer you suitable items with a top price-performance ratio for almost every requirement and budget. We also have product lines such as carpets, wall paints, wallpapers and doors. The range of attractive offers for walls, floors and patios is rounded out by high-quality accessories and effective cleaning and maintenance products. Meanwhile, planeo's services go beyond the trade in floor coverings.

We put great emphasis on the idea of service in everything we do. We deal with the topics of material, handling and realisation in such detail that we can provide you with an adequate solution for many different situations on the building site. To make things more clear, you can find useful tips and instructions in our guides with articles and videos. Beautiful flooring and more? Realise easily with planeo.



Technical Details
item no. NK10061100
Manufacturer planeo
Collection NovikStone DS
suitable for Wall, Gable, Base, Interior
Look Stone effect
Length in mm 1054
Width in mm 334
Thickness in mm 30
Material Plastic
Colour grey
Piece per package 10
EAN 4062212077405
Gloss level matte
Shipping group XL
Deck size 810 x 300 mm
Absolute dimensions 1054 x 334 mm
Construction Facade panel
Laying direction horizontal
Laying

Installation takes place on a vertical substructure at a distance of 25cm as a ventilated façade from bottom left to top right

Fastening

by means of screws or nails in the screw groove of the façade panels

Number of fasteners Facade screw V2A Torx - 4 x 35 mm Requirement 15pcs/m²
Surface stark strukturiert
Weight 11,35 kg/Packing
Package Content 2.32 m²
Show all data ▼

Downloads
Fassadenplatte NovikStone DS Schichtstein - Verlegeanleitung
Fassadenplatte NovikStone DS Schichtstein - vertikale Verlegeanleitung

We will help you with your questions!


A specialist adviser will be happy
to advise you personally.


☎ +49 5222 960 4810
Mon - Fri: 9am - 6pm
Sat: 9am - 2pm

Product questions

Installation guide of the facade

Variant: DIY-Instruction

button
1. substrate preparation

In order for the facade to have the desired longevity, it is essential that the substrate is load-bearing. The building can also be insulated before the facades are applied.

ATTENTION: Please maintain at least 30 cm ground clearance for splash water protection on wooden buildings.

Before installation, it is imperative that the official installation instructions, which are included in every package, are followed, otherwise all warranty and guarantee claims will be void!

button
2. attaching the substructure

Before attaching the substructure, first, make markings to determine the positions of the battens and then mount them. Also, plan corner or end profiles at the corners and dowel the profiles to the masonry. To ensure that the facade is also well ventilated, drill ventilation holes in the battens. The battens are now placed at a maximum distance of 65 cm from each other. Also plan for board joints and edge distances and double-fix the substructure at the joints.

Tip: You can attach grids to the gable and base to protect them from small animals.

button
3. attach the façade cladding

Mark all the positions of the Starclips with the help of a chalk line and place the Startclips in a well aligned position. Stick the Compriband onto the end profiles and screw the profiles to the corners of the building. Small animal grids can also be attached to the base termination as protection. Now the facade cladding can be attached. With the help of a rubber mallet, you can fix the next rows to the already mounted facade.

ATTENTION: Please note that edge distances of approx. 10 mm should be observed.

What you will need to make it yourself

Material:

  • Exterior cladding

Tools:

  • Spirit level
  • Striking cord
  • Crosscut saw
  • Battens
  • Folding rule
  • Pencil
  • Cordless screwdriver
  • Rubber mallet
  • Starting clips
  • Spacer

optional:

  • Small animal protection sleds
  • Waterline laser
  • Hammer
  • Straightedge
  • Edge trim profiles
  • Facade edging profiles
