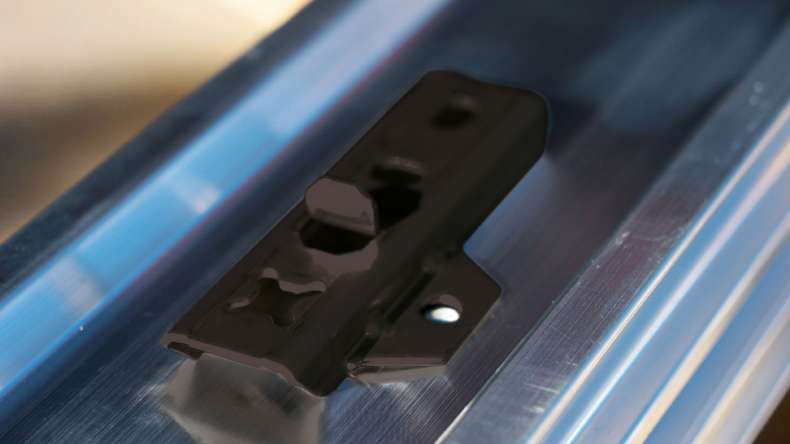

planeo patio clip set stainless steel DILA2 black

for the invisible fastening of wooden decking
Item no.: 6805000
  • Special terrace clip made of stainless steel.
  • Enables invisible fastening of wooden decking to aluminium and wooden substructures.
  • Additionally ensures an under-ventilation of 5mm between plank and substructure.
  • 1 pack is sufficient for approx. 6.5m².

    Scope of delivery:
  • 200 pcs. 17mm stainless steel clip.
  • 400 pcs. screws TX15 4,2x17mm.
  • 100 pcs. screws TX15 4,2x28mm.
  • 1 pc Drill hole template as joint spacer.

  • Special terrace clip made of stainless steel.
  • Enables invisible fastening of wooden decking to aluminium and wooden substructures.
  • Additionally ensures an under-ventilation of 5mm between plank and substructure.
  • 1 pack is sufficient for approx. 6.5m².

    Scope of delivery:
  • 200 pcs. 17mm stainless steel clip.
  • 400 pcs. screws TX15 4,2x17mm.
  • 100 pcs. screws TX15 4,2x28mm.
  • 1 pc Drill hole template as joint spacer.

Free quote
Description
Technical data

Product description

The planeo DILA2 decking clip set in black offers a high-quality solution for the concealed installation of wooden decking. As the boards are fixed from the underside, the surface of the decking remains free of visible screw heads, creating an elegant and barefoot-friendly look.

  • Aesthetics without compromise: as the fastening takes place on the underside of the decking boards, the natural appearance of the wood is not marred by drill holes. The black coating on the stainless steel clips makes them virtually invisible in the joints.

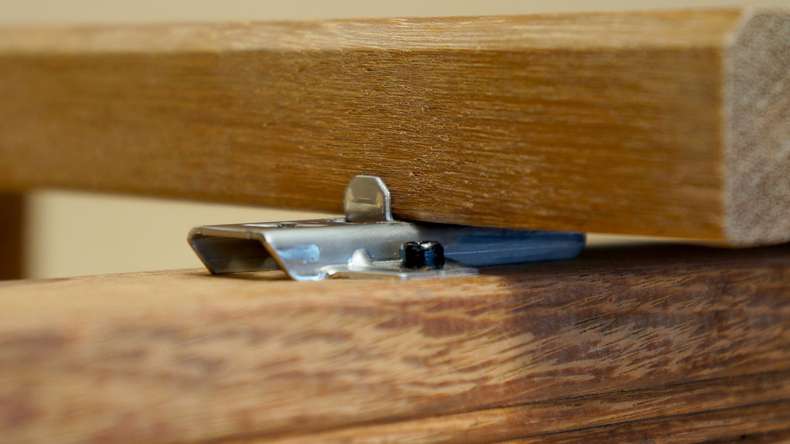

  • Integrated structural wood protection: The clips automatically create a gap of approx. 5 mm between the board and the substructure. This under-ventilation prevents waterlogging and allows the wood to dry quickly after rain, which significantly extends the lifespan of the decking.

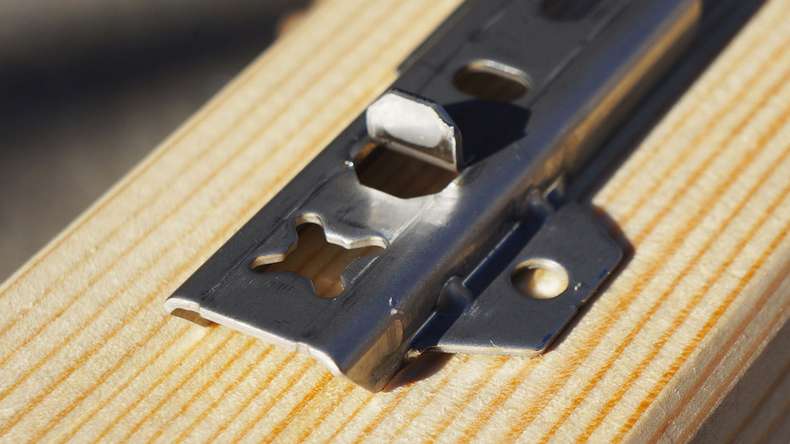

  • Flexibility in material selection: The set is universally applicable and is suitable for both timber and aluminium substructures. The clips flexibly accommodate the natural swelling and shrinkage movements of the timber without causing stress cracks.
  • Comprehensive complete set: One pack contains everything needed for approx. 6.5 m² of decking area: 200 stainless steel clips (17 mm), 400 fixing screws for the decking boards (4.2 x 17 mm), 100 system screws for the substructure (4.2 x 28 mm) and a handy drilling template that also serves as a joint spacer.
  • Rust-free quality: The clips and screws are made of high-quality stainless steel. This guarantees long-lasting corrosion resistance and prevents unsightly rust streaks on the decking.

Note: We strongly recommend using the supplied drilling template to ensure precise drilling and uniform joint spacing across the entire surface.

item no.: 6805000

Technical data

item no. 6805000
Manufacturer planeo
EAN 4062212005491
Weight 2.98 kg / Packing
Type Clips
Piece per package 200
Shipping group XS
Package Content 1 Set
