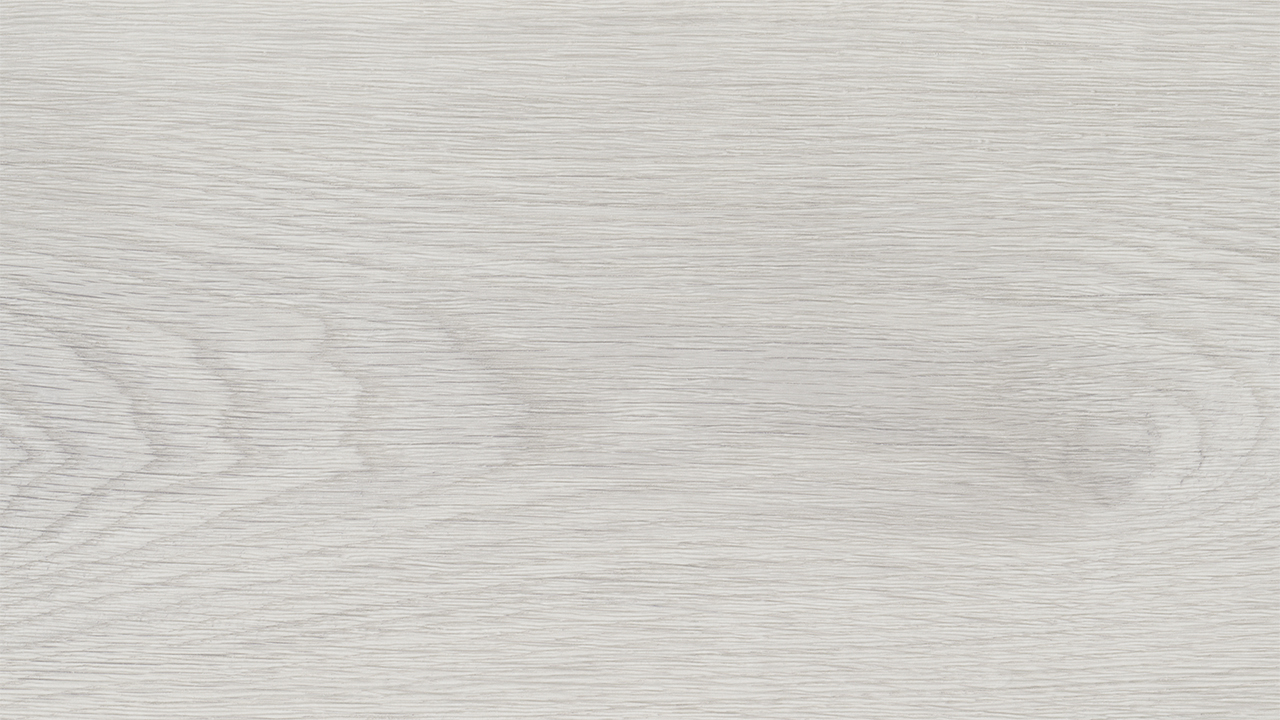

planeo click vinyl - White Oak (69102CL3)

0.30 mm wear layer - 31 trades (light) - solid vinyl - bevelled edge (4-sided) - wood look wideplank (1-plank) - white - waterproof

Item no.: 69102CL3

Creates a special look in the rooms.
Long service life.
Hardwearing - 0.3 mm wear layer.
Ideal for renovations.
Non-slip, thanks to R10 slip class.
Suitable for damp rooms.

Request alternative

Description

Technical data

DIY - Videos

We recommend the following accessories

Product description

The high-quality solid vinyl is insensitive to moisture and can therefore also be installed in bathrooms and kitchens.

Easy to install and care for
Resistant and robust
Variety of decors
Non-slip

item no.: 69102CL3

robust & durable
insensitive to dirt
underfloor heating
easy to lay
Suitable for damp rooms
Non-slip
Easy to clean
High performance

Technical data

item no.	69102CL3
Length in mm	1212
Width in mm	185
Thickness in mm	4
Wear layer	0,30 mm
Wear class	31 Commercial (light)
Joint	Beveled edge (4 sides)
Warranty	10 Jahre Privat
suitable for	Bath, Kitchen, Bedroom & living room, Hallway & Corridor
installation pattern	Plank pattern (1-plank)
Installation type	click
Wood type	Oak
Look	Wood effect
Sorting (grain)	lively/rustic
Special features	Non-slip
EAN	4062212203903
Piece per package	12
Structure	Full vinyl
Slip resistance	R10
Shipping group	M
Weight	15,01 kg / Packing
Colour	white
Range of application	Residential, Commercial
Click variant	DropDown
Underfloor heating	Hydronic UFH compatible
Package Content	2,24 m²

Downloads

Print page

DIY step by step

Variant: DIY-Instruction

button

1. substrate preparation

Check the subfloor. Any unevenness exceeding 3mm should be sanded down or filled with a floor levelling compound. Then clean the surface to be laid with a hoover.

CAUTION: Never install vinyl over a soft subfloor such as carpet, cork or any type of foam underlay.

button

2. acclimatisation

The vinyl planks should be stored horizontally in the room where it is to be installed for at least 48 hours before the installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after installation.

button

3. before laying

Before laying the floor, it is imperative to follow the official laying instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!

Before laying out the floor, check the wall you are starting on and make sure it is at right angles to the opposite wall. If the impact sound insulation is not already integrated, we now recommend spreading out the insulation.

button

4. laying instructions

Tips on the drop-down click system: In order to achieve the most uniform appearance of the floor, it is advisable to install panels from different packages mixed together. You should start laying in one corner (left) and starting from the wall. Lay the first plank with the tongue side facing the wall. Then snap the second plank into the first from the top on the face side. In the second row, place the plank at an angle to the long side of the row already laid and fold it down. With the help of a rubber mallet, you can lock the face of the following planks by gently hitting them. To cut a plank, now take measurements and mark the plank. Then take an angle and tear and break the plank with a multi-purpose knife/cutter.

button

5. finishing the last row

The last plank of a row should be the same length as the first plank. Place the spacers against walls, door frames, fixed wall cabinets, kitchen units etc. so that you have an expansion gap of approx. 5-10mm for underfloor movement or expansion of the product. To install the last row, it is recommended to use the floor layer's jointing iron from the accessories. When using skirting boards, make sure that the expansion joint is covered by the skirting board. If the floor is sealed, e.g. in the bathroom, the PE round cord is now inserted into the expansion joint and the floor sealed with a silicone joint.

button

6. attach skirting boards

Finally, cut off the PU film approx. 2 cm high and attach the skirting boards.

Helpful Videos

DIY step by step

Variant: DIY-Instruction

button

1. substrate preparation

Check the subfloor. Any unevenness exceeding 3mm should be sanded down or filled with a floor levelling compound. Then clean the surface to be laid with a hoover.

CAUTION: Never install vinyl over a soft subfloor such as carpet, cork or any type of foam underlay.

button

2. acclimatisation

The vinyl planks should be stored horizontally in the room where it is to be installed for at least 48 hours before the installation in the packages. This will allow the material to acclimatise to the room temperature and not "work" so hard after installation.

button

3. before laying

Before laying the floor, it is imperative to follow the official laying instructions, which are included in every package, otherwise any claim to warranty and guarantee will be void!

Before laying out the floor, check the wall you are starting on and make sure it is at right angles to the opposite wall. If the impact sound insulation is not already integrated, we now recommend spreading out the insulation.

button

4. laying instructions

Tips on the drop-down click system: In order to achieve the most uniform appearance of the floor, it is advisable to install panels from different packages mixed together. You should start laying in one corner (left) and starting from the wall. Lay the first plank with the tongue side facing the wall. Then snap the second plank into the first from the top on the face side. In the second row, place the plank at an angle to the long side of the row already laid and fold it down. With the help of a rubber mallet, you can lock the face of the following planks by gently hitting them. To cut a plank, now take measurements and mark the plank. Then take an angle and tear and break the plank with a multi-purpose knife/cutter.

button

5. finishing the last row

The last plank of a row should be the same length as the first plank. Place the spacers against walls, door frames, fixed wall cabinets, kitchen units etc. so that you have an expansion gap of approx. 5-10mm for underfloor movement or expansion of the product. To install the last row, it is recommended to use the floor layer's jointing iron from the accessories. When using skirting boards, make sure that the expansion joint is covered by the skirting board. If the floor is sealed, e.g. in the bathroom, the PE round cord is now inserted into the expansion joint and the floor sealed with a silicone joint.

button

6. attach skirting boards

Finally, cut off the PU film approx. 2 cm high and attach the skirting boards.
